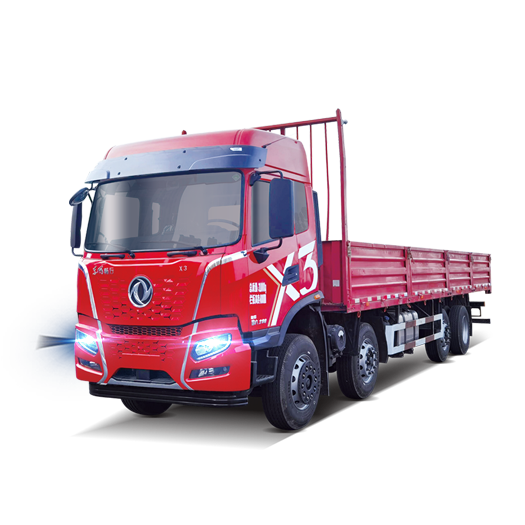

玉柴290馬力能拉21噸，致富能手奔小康;
空載時三軸運行，阻力小更省油，節油10%左右:
整車車型 (底盤型號) | DFV1313GP6DT欄板 (底盤型號: DFV1313GP6DTJ) | DFV5313CCYGP6DT倉柵 (底盤型號: DFV1313GP6DTJ) | DFV5313XXYGP6DT廂式 (底盤型號: DFV1313GP6DTJ) | DFV5313XYKGP6DT翼開啟 (底盤型號: DFV1313GP6DTJ) |
外形尺寸 《長*寬*高) (mm) | 9300,9500,10200,10400, 10600,12000,9700,10100, 0300,10500,10700x2500， 2550x2830,2980,3100, 3250,3450,3560,3610 | 9300,9700,10100, 10300,10500,10700, 12000x2500,2550x3560, 3750,3850,3900, 3950,3990 | 9300,9700,10100, 10300,10500,10700, 12000x2500,2550x3560, 3750,3850,3900, 3950,3990 | 9300,9700,10100, 10300,10500,10700, 12000x2500,2550x3560. 3750,3850,3900,3950,3990 |
箱體尺寸 (長*寬"高) (mm) | 6800,7200,7600,7800, 8000,8200,9400, 9600x2400, 2450x600,800 | 6800,7200,7600,7800, 8000,8200,9400,9600x2400, 2450x600,800 | 6800,7200,7600,7800,8000, 8200,9400,9600x2400, 2450x2100,2200, 2400,2450,2500,2570,2620 | 6800,7200,7600,7800, 8000,8200,9400, 9600x2400,2450x2100,2200, 2400,2450,2500,2570,2620 |
總質量 (kg) | 3100 | |||
額定質量 (kg) | 21555,20635, 21620,20700 | 21025,21090, 20125,20190 | 20905,20970, 19925,19990 | 20305,20370, 19305,19370 |
整備質量 (kg) | 9250,10170 | 9780,10680 | 9900,10880 | 10500,11500 |
| 軸距 | 1995+2950+1300,1995+3150+1300,1995+3850+1300,1995+4250+1300 | |||
| 發動機 | YCS06270-60,YCS06290-61 | |||
